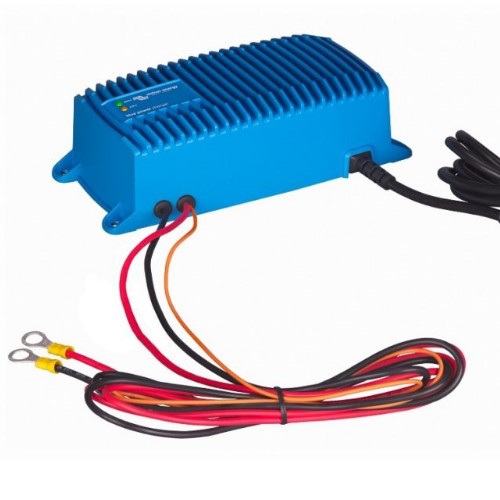

Victron Blue Power IP67 Battery Charger 12V / 24V

116,00229,00 Incl. Tax

Dimensions 85 x 211 x 60 mm / 99 x 219 x 65 mm /
Weight 1.8 – 2.4 kg
Download datasheet
Delivery from Germany: 2-5 days
Select voltage and power:

Clear
SKU: BP67 Category: Tag:

Description

Completely encapsulated: Waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Blue Power IP67 Charger. The casing is made of cast aluminum and
Electronics is molded in resin.
Start interrupting
The suffix (1 + Si) models have a different power-limited output, which is always operated as long as 180-265 VAC is present on input. This output can, for example, Used to prevent starting a vehicle before removing the battery charger (start-up function).
The highest efficiency ever!
Setting a new industry standard: with 92% efficiency or better, these chargers waste three to four times less heat.
And when the battery is fully charged, power consumption is reduced to less than one watt, five to ten times better than the industry standard.
Adaptive 4-step loading algorithm: bulk-absorption-river grandeur
The Blue Power charger has a microprocessor-controlled “adaptive” battery management. The ‘adaptive’ feature automatically optimizes charging according to the way the battery is used.
Less maintenance and aging when the battery is not in use: Storage function
The storage mode starts when the battery has not been exposed to discharge in 24 hours. In the storage function, float voltage is reduced to 2.2 V / cell (13.2 V for a 12 V battery) to minimize exhaust and corrosion
Of the positive plates. Once a week, the excitement is raised to abso
RPT level to ‘equalize’ the battery.
This feature prevents stratification of electrolyte and sulphation, a major cause of early battery failure.
Protected against overheating
Can be used in a warm environment like a engine room.
The output current is reduced as the temperature rises to 60 ° C, but the charger fails.
Two LEDs for status indication
Yellow LED: Bulk charge (flashing fast), absorption (flashing slowly), floating (fixed), storage (off), green LED: power o

Input voltage: 230V AC
Dimensions 85 x 211 x 60 mm / 99 x 219 x 65 mm / 85 x 211 x 60 mm / 99 x 219 x 65 mm
Weight 1.8 – 2.4 kg

Options:

Blue Power IP67, 12V / 7A / 1 Output.
Blue Power IP67, 12V / 13A / 1 Output.
Blue Power IP67, 12V / 17A / 1 Output.
Blue Power IP67, 12V / 17A / 1+Si Output.
Blue Power IP67, 12V / 25A / 1 Output.
Blue Power IP67, 12V / 25A / 1+Si Output.
Blue Power IP67, 24V / 5A / 1 Output.
Blue Power IP67, 24V / 8A / 1 Output.
Blue Power IP67, 24V / 8A / 1+Si Output.
Blue Power IP67, 24V / 12A / 1 Output.
Blue Power IP67, 24V / 12A / 1+Si Output.

[wp_ad_camp_2]

Additional information

Weight 1.5 kg
Producent

Victron Energy

Battery voltage & power

Blue Power IP67, 12V / 7A / 1Output, Blue Power IP67, 12V / 13A / 1Output, Blue Power IP67, 12V / 17A / 1Output, Blue Power IP67, 12V / 17A / 1+Si Output, Blue Power IP67, 12V / 25A / 1Output, Blue Power IP67, 12V / 25A / 1+Si Output, Blue Power IP67, 24V / 5A / 1Output, Blue Power IP67, 24V / 8A / 1Output, Blue Power IP67, 24V / 8A / 1+Si Output, Blue Power IP67, 24V / 12A / 1Output, Blue Power IP67, 24V / 12A / 1+Si Output
